Part 2: Intro to Relational Model

1 Structure of Relational Databases

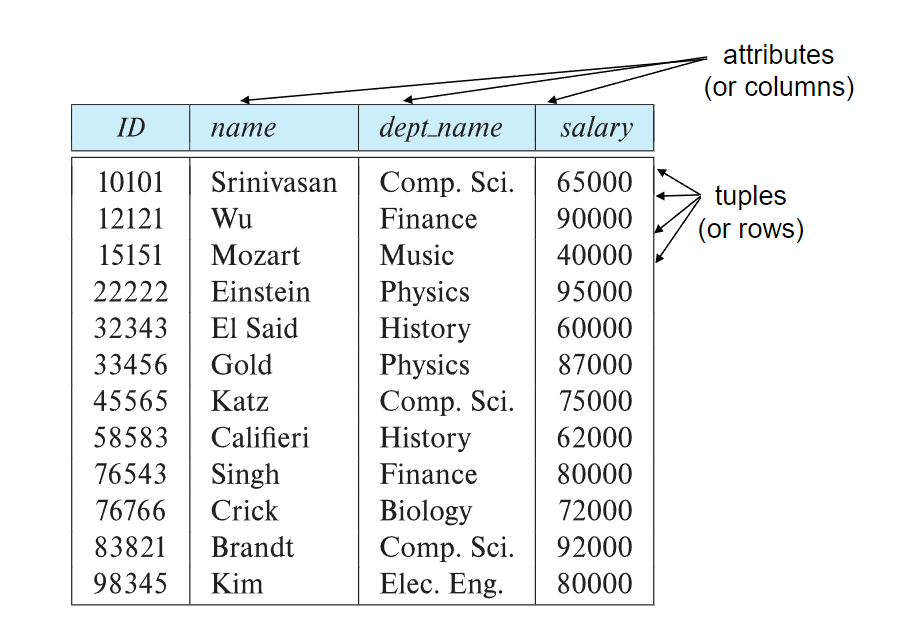

Example

1.1 Attributes

• domain（域）： the set of allowed values for this attribute
• indivisible (atomic 原子的)
• null is a member of every domain

1.2 Relations are Unordered

2 Database Schema

• database schema: the logical structure of a database
• instructor(ID, name, dept_name, salary)
• database instance: a snapshot（快照） of the data（即数据+表头等）

3 Keys

• superkey（超键）：sufficient to identify a unique tuple
• candidate key（候选键）：minimal superkey
• primary key（主键）：One of the candidate keys is selected to be the primary key
• foreign key（外键）：Value in one relation must appear in another

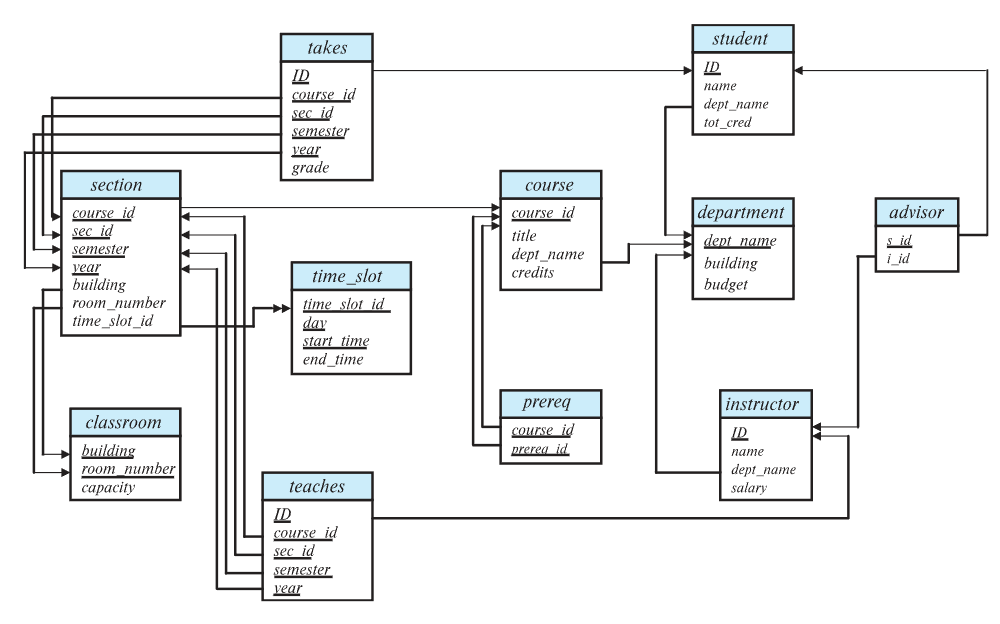

3.1 Schema Diagram

4 Relational Query Languages

4.1 Six basic operators

• select: \(\sigma\)
• \(\sigma_{\text{dept\_name="Physics"}}(\text{instructor})\)
• project: \(\Pi\)
• \(\Pi_{A_1, A_2, A_3\dots A_k}\)®
• 从r中选取attributes A1等，不含重复元素，relations是集合
• union: \(\cup\)
• r, s有相同元数（attributes数相同）
• The attribute domains must be compatible(example: 2^nd column of r deals with the same type of values as does the 2^nd column of s)
• set difference: \(-\)
• Cartesian product: \(\times\)
• 两个表中任意两行信息的组合

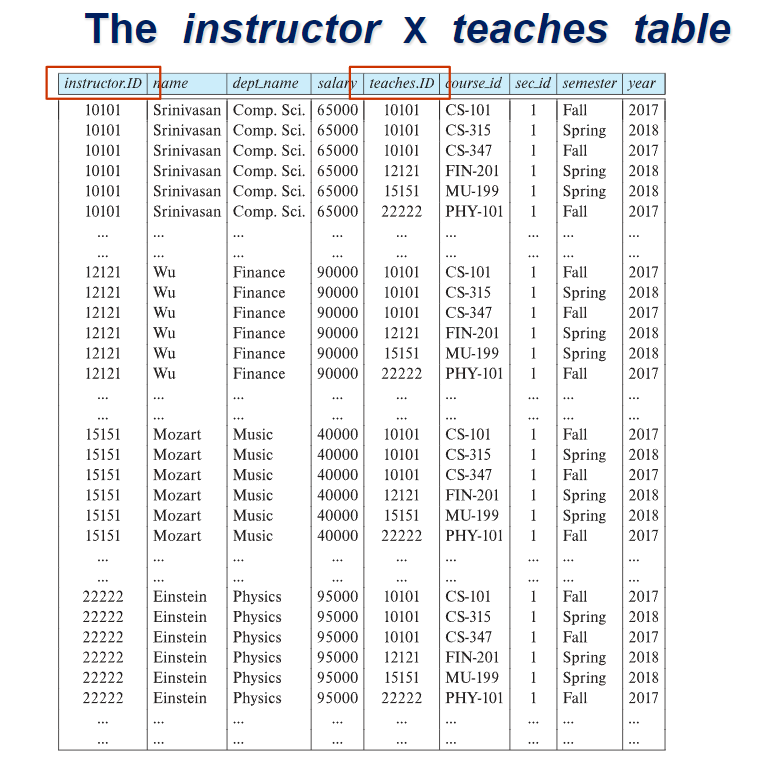

Example

\(\text{instructor}\times \text{teaches}\)

• rename: \(\rho\)
• \(\rho_x(E)\)

4.2 Select Operation

• comparison: \(=,\neq,>,\geq,<,\leq\)
• connectives: \(\wedge, \vee, \urcorner\)

5 The Relational Algebra（关系代数）

Example

\(\Pi_{\text{name}}(\sigma_{\text{{dept\_name="Physics"}}}(\text{instructor}))\)

• Join Operation : \(r\bowtie_\theta s=\sigma_\theta(r\times s)\)
• Assignment Operation: $$ \begin{aligned} &\text{Physics}\leftarrow\sigma_\text{dept_name="Physics"}(\text{instructor})\ &\text{Physics}\cup\text{Music} \end{aligned} $$
