Part1

Info

Course Pracitce

  • 数据库系统实验要求
  • 图书管理系统实验
  • minisql

Grading Policy

  • assignments 10
  • quizs 10
  • experiments 30
  • final 50

1 Purpose of Database Systems

  • Data redundancy and inconsistency 数据冗余与不一致
  • Difficulty in accessing data 存取数据困难
  • need to write a new program to carry out each new task
  • Data isolation 数据孤立
  • Integrity problems 完整性问题
  • 约束条件没有显示声明

  • Atomicity of updates 原子性问题

    Example

    transfer of funds from one account to another should either complete or not happen at all

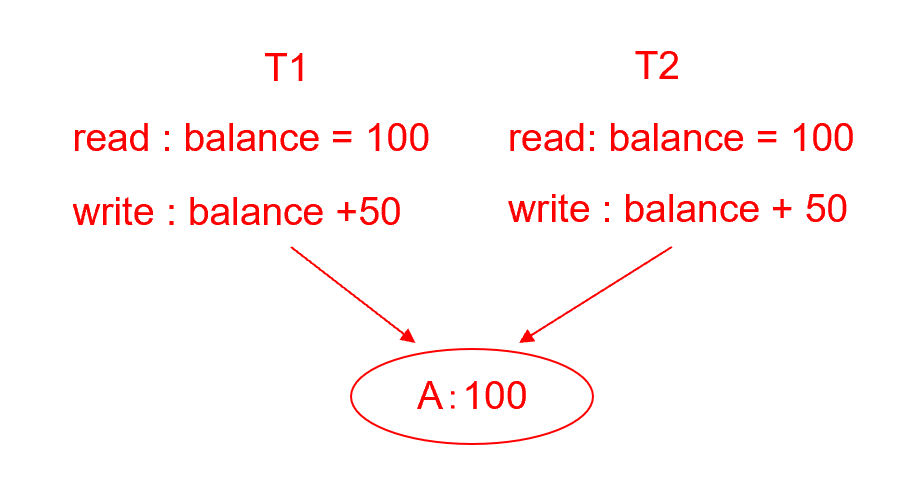

  • Concurrent access anomalies 并发访问异常

    Example

    alt text

    • Security problems
    • Authentication (认证), Priviledge (权限), Audit (审计)

2 Characteristics of Databases

  • data persistence
  • convenience in accessing data
  • data integrity
  • concurrency control for multiple user
  • failure recovery
  • security control

3 Levels of Abstraction（抽象层次）

  • Physical level（物理层）: describes how a record (e.g., instructor) is stored.
  • Logical level（逻辑层）: describes data stored in database, and the relationships among the data.
  • View level（视图层）: application programs hide details of data types. Views can also hide information (such as an employee’s salary) for security purposes.

4 View of Data

alt text

5 Schema and Instance

5.1 Schema

  • the logical structure of the database
  • Analogous to type information of a variable in a program
  • Physical schema（物理模式）: database design at the physical level
  • Logical schema（逻辑模式）: database design at the logical level

5.2 Instance(实例)

  • the actual content of the database at a particular point in time
  • Analogous to the value of a variable

6 Data Independence

  • Physical data independence: the ability to modify the physical schema without changing the logical schema
  • Logical data independence: the ability to modify the logical schema without changing the user view schema

7 Data Models

7.1 A collection of tools for describing

  • data 数据
  • data relationships 联系
  • data semantic 语义
  • data constraints 约束

7.2 Relational Model

  • columns / attributes 列/属性
  • rows / tuples 行/元组

8 Database Languages

8.1 Data defimition language (DDL) 定义语言

Example

create table instructor(
  ID        char(5),
  name      varchar(20),
  dept_name varchar(20),
  salary    numeric(8,2)
)
  • DDL compiler generates a set of table templates stored in a data dictionary（数据字典）
  • Data dictionary contains metadata (元数据， i.e., data about data)
  • database schema/integrity constraints/authorization

8.2 data manipulation language (DML) 操作语言

  • SQL is the most widely used query language
  • two classes of languages
  • procedural 过程式 （user specifies what data is required and how to get those data）
  • declarative 陈述式 （without specifying how to get those data）

9 Transaction Management

  • A transaction is a collection of operations that performs a single logical function in a database application.
  • Ensures that the database remains in a consistent (correct) state despite system failures (e.g., power failures and operating system crashes) and transaction failures.
  • Concurrency-control manager controls the interaction among the concurrent transactions, to ensure the consistency of the database.

10 Database Architecture

  • Centralized databases（集中式数据库） :
  • 一到少数几个核心，共享内存。
  • 客户端-服务器架构：一台服务器代表多个客户端执行任务。
  • Parallel databases（并行数据库） :
  • 多 core 共享内存。
  • Shared disk（共享磁盘）(集群): 所有节点共享访问相同的磁盘存储。
  • Shared nothing（无共享）: 每个节点拥有自己的磁盘存储，节点之间通过网络通信。
  • Distributed databases（分布式数据库） :
  • 地理分布。
  • 模式/数据异构性。

11 Database Applications

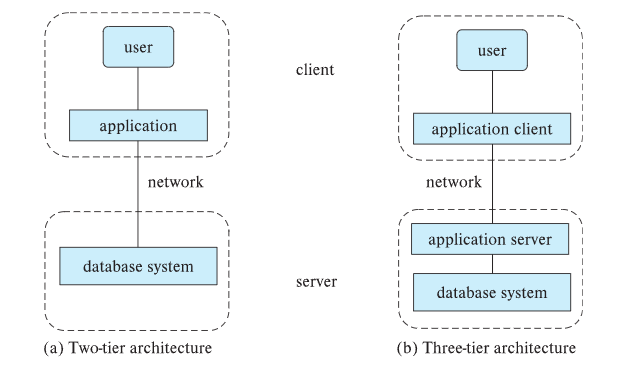

  • Two-tier architecture: 应用程序驻留在客户端机器上，并在客户端调用服务器端的数据库系统功能。
  • Three-tier architecture: 客户端机器充当前端，不包含任何直接的数据库调用。客户端通过某种界面（通常是表单界面）与应用服务器通信。应用服务器再与数据库系统通信以访问数据。
Note

alt text

12 Database Administrator(DBA)

Functions

  • Schema definition
  • Storage structure and access-method definition
  • Schema and physical-organization modification
  • Granting of authorization for data access
  • Routine maintenance

Homework

1.7 List four signifcant differences between a file-processing system and a DBMS

file-processing system DBMS
1 Difficulty in accessing data(need to write a new program to carry out each new task) convenience in accessing data
2 Integrity problems data integrity
3 Concurrent access anomalies concurrency control for multiple user
4 Security problems security control

1.8 Explain the concept of physical data independence and its importance in database systems.

  • The ability to modify the physical schema without changing the logical schema
  • Importance: changes in some parts do not seriously influence others

1.9 List five responsibilities of a database-management system. For each responsibility, explain the problems that would arise if the responsibility were not discharged.

  1. Data integrity: Ensures that the data is accurate and consistent. If not, the system cannot be able to detect and the errors.
  2. Concurrency control: Ensures that multiple users can access the data simultaneously without interfering with each other. If not, the system may lead to unpredictable results.
  3. Security: Ensures that the data is protected from unauthorized access and modification. If not, the system may be vulnerable to attacks.
  4. Recovery: Ensures that the system can recover from failures and maintain its integrity. If not, the system may be unable to recover and the data may be lost.
  5. Data persistence: Ensures that the data is stored permanently. If not, the data may be lost permanently.

1.15 Describe at least three tables that might be used to store information in a social-networking system such as Facebook.

Table 1:

ID user names ages emails passwords

Table 2:

post_id post_title post_content post_date post_author

Table 3:

comment_id comment_content comment_date comment_author post_id
